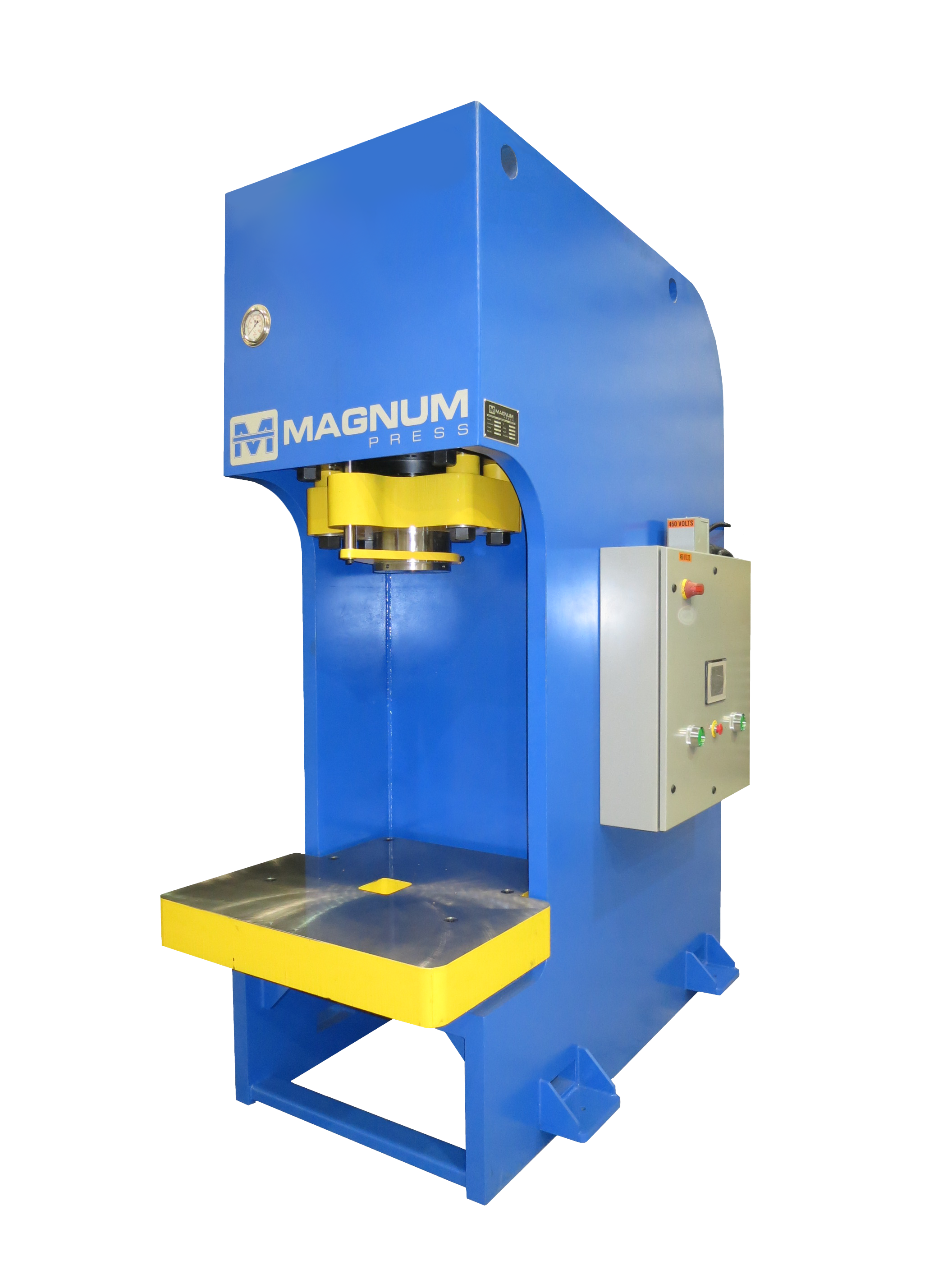

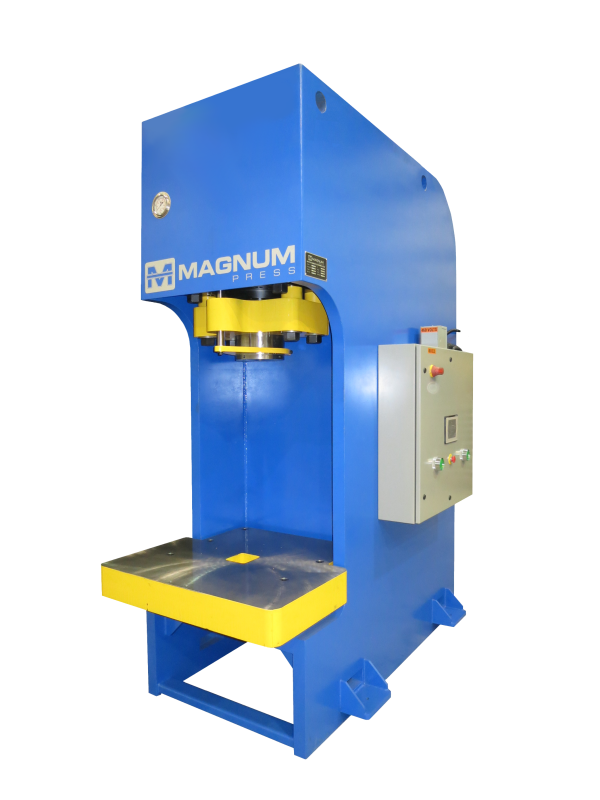

MCF230B – 230 Ton Floor Model C-Frame with Non-Rotation RAM High Speed Hydraulic Press
The MCF Series is the standard floor model C-frame press. This series is available in both standard and high speed. These machines can be SMOKING FAST for full-on production and they are workhorses. Often referred to as a “C” frame hydraulic press, these compact hydraulic presses are available in standard model configurations from 4 ton to 400 tons. These machines can be supplied with tool mounting plates or can be easily customized for your application. They are designed to be mounted on the floor and do not need a stand or table. Standard features include completely removable power packs, robust fabricated steel frames and reliable hydraulic systems. These self-contained hydraulic presses are suitable for a wide variety of operations including assembly, blanking, coining, forming, punching, riveting and staking.
Specifications
Tonnage Capacity: 230
Series: MCF Series
Type: Assembly, Blanking, Coining, Punching, Riveting, Shearing, Shop Press, Staking, Straightening, Trimming
Speed: High
Machine Type: C-Frame, Floor
Additional Features: Standard RAM, Centered Load
Scroll for more information below
Product Description
FEATURES
-
- Robust press for heavy industrial applications.
- Heavy Floor Model C-Frame Design does not require mounting bench
- Pressure and Distance Reverse
- Allen Bradley PLC & HMI
- PLC & HMI based controls
- NFPA-79 / UL508A compliant
- Quiet self contained and removable hydraulic system
- Efficient manifold w/SICV valves
- FAST ACTING 3 stage electro-hydraulic decompression
- Press mounted ergonomic controls
- Air to Oil Heat Exchanger
- 2-Hand Anti Tie-Down Start
- CAT 4 Safety Start Relay
- Efficient TEFC electric motor
- Magnetic Starter w/Lockable Disconnect / Electronic Overload
- Adjustable Stroke
- NFPA Cylinder with heavy flange and oversized rod
- Adjustable tonnage through full range of stroke
- Removable Bolster
- Electrohydraulic decompression
- Flat Face O-Ring hydraulic connections for the most leak resistant design
