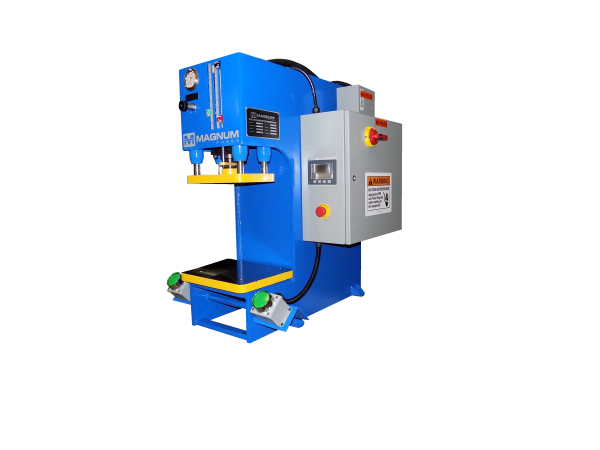

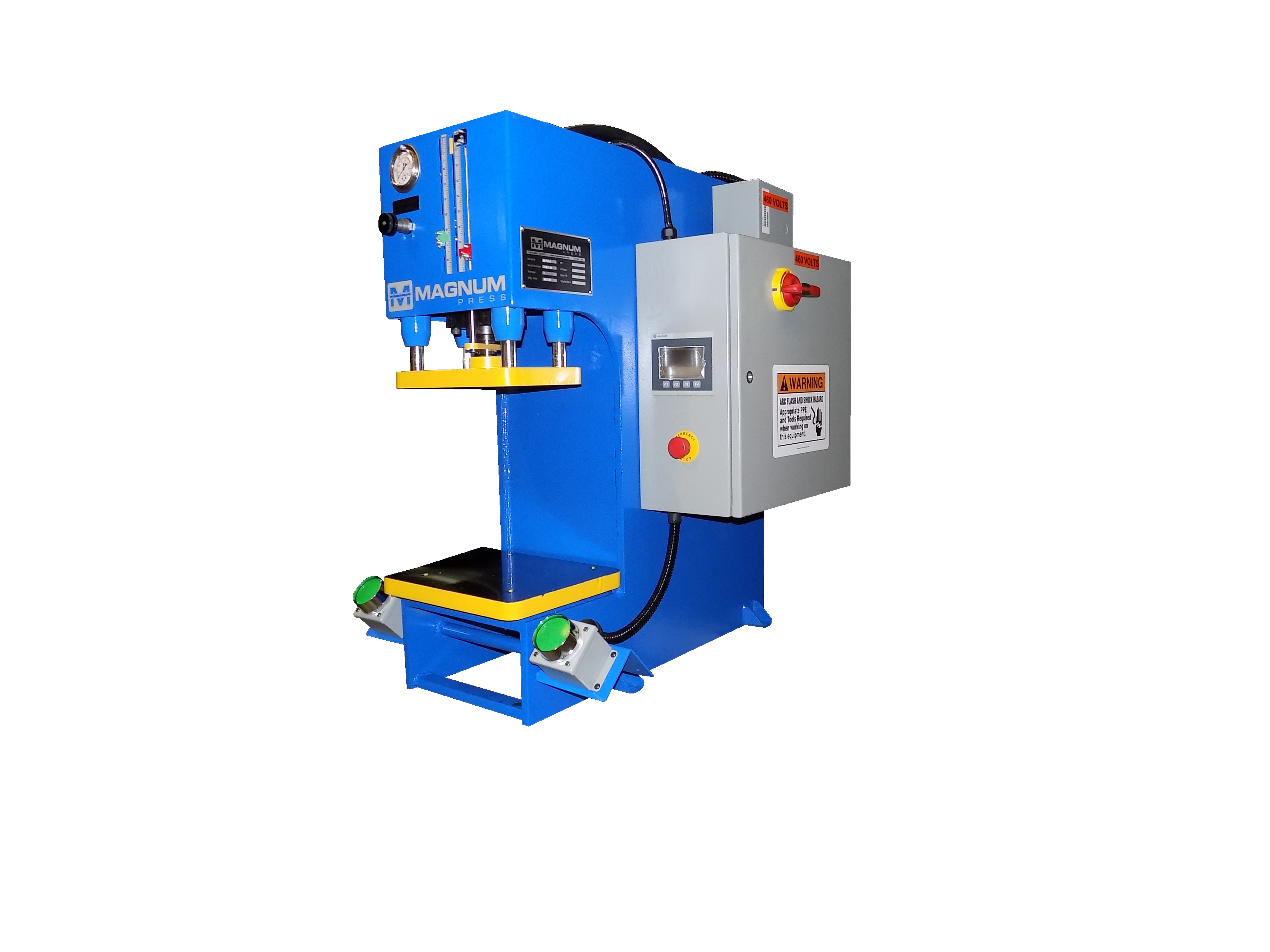

M4PB6B- 6 Ton Bench Model C-Frame with 4 Post Tool Plate High Speed Hydraulic Press
The M4PB Series offers the performance of the MCB Series with a 4-post guided tool plate in a standard bench model C-frame press. This series is available in both standard and high speed and fully customizable. These machines can be SMOKING FAST for full-on production and they are workhorses. Often referred to as a “C” frame hydraulic press, these compact hydraulic presses are available in standard model configurations from 2 tons to 40 tons. They are designed to be mounted on a separate stand or table. Standard features include completely removable power packs, robust fabricated steel frames and reliable hydraulic systems. These self-contained hydraulic presses are suitable for a wide variety of operations including assembly, blanking, coining, forming, punching, riveting and staking.
Specifications
Tonnage Capacity: 6
Series: M4PB Series
Type: Assembly, Blanking, Coining, Punching, Riveting, Shearing, Shop Press, Staking, Straightening, Trimming
Speed: High
Machine Type: C-Frame, Bench
Additional Features: 4 Post RAM, 4 Post Upper Platen Tool Plate, Centered Load
Scroll for more information below
Product Description
FEATURES
- Robust press for heavy industrial applications
- Heavy Bench Model C-Frame Design
- 4 Post Guided Upper Tool Plate RAM
- Pressure and Distance Reverse
- Allen Bradley PLC & HMI
- PLC & HMI based controls
- NFPA-79 / UL508A compliant
- Quiet self contained and removable hydraulic system
- Efficient manifold w/SICV valves
- FAST ACTING 3 stage electro-hydraulic decompression
- Press mounted ergonomic controls
- 2-Hand Anti Tie-Down Start
- CAT 4 Safety Start Relay
- Efficient TEFC electric motor
- Magnetic Starter w/Lockable Disconnect / Electronic Overload
- Adjustable Stroke
- NFPA Cylinder with heavy flange and oversized rod
- Adjustable tonnage through full range of stroke
- Removable Bolster
- Electrohydraulic decompression
-
Flat Face O-Ring hydraulic connections for the most leak resistant design
